The Dock Rite Sectional Style Dock Frame is constructed with tubular aluminum material for strength
The frame is precision welded for a durable and light-weight dock frame. Additional aluminum cross members and support beams provide your family with a rigid and secure surface to walk on. It is a clean and attractive design with four options for decking that are recessed into the dock frame.
Dock Rite Offers Design Features That Provide Years Of Worry Free Use
Design Features
The Dock Rite sectional style dock incorporates the following design features to provide you with a strong, sturdy, easy to use dock, engineered to give you years of worry free use.
- The modular design is easy to expand or add slips.
- Tubular aluminum frame for strength.
- Extra long post pockets for added stability.
- 1×2 dual center stringers for extra strength and support.
- Our screw jack legs come in sizes ranging from 42” to 90” for all your water depth needs. They are made of 2½” heavy wall tubing.
- 2 1/2″ posts are available when screw jack are unnecessary.
- Sand pads are interchangeable on any wheel assembly and provide a wide, solid base. Sand pads are ideal when portability is not an issue.
- All of our aluminum products are backed by a 15 year structural warranty against defects in material and workmanship. All purchased materials will use the pass through warranty from the manufacturer of those products. Please see warranty statement for full details.

Over-sized Molded 15 Pound Polyethylene Wheel
Cannot go flat. The large diameter, wide wheel rolls better and will sink less, making installation and removal easier.

Sectional Post or Roll In Dock
“L” connection
The sections hook together.
What could be easier?

Extruded Post Pocket
Engineered for extra strength and stability.
Decking Materials

WoodBeam
Made of Polypropylene plastic, Woodbeam is the perfect low maintenance, simulated wood product for your next dock project. The deep wood grain finish gives you that wood look and feel while being maintenance free and easier to install. UV protected. Available in Cedar or Gray.

Titan Deck
Made of 100% polypropylene plastic, Titan decking will never rot, warp, dent, splinter or bend and never needs painting or staining. It’s UV protected, barefoot friendly decking that stays cool to the touch even in extreme temperatures. Available in Tan or Gray.

Aluminum Decking
The ultimate maintenance free decking option. Tan powder coated Panels that stay cooler than wood or carpet.
Standard Sectional Frame Schematics

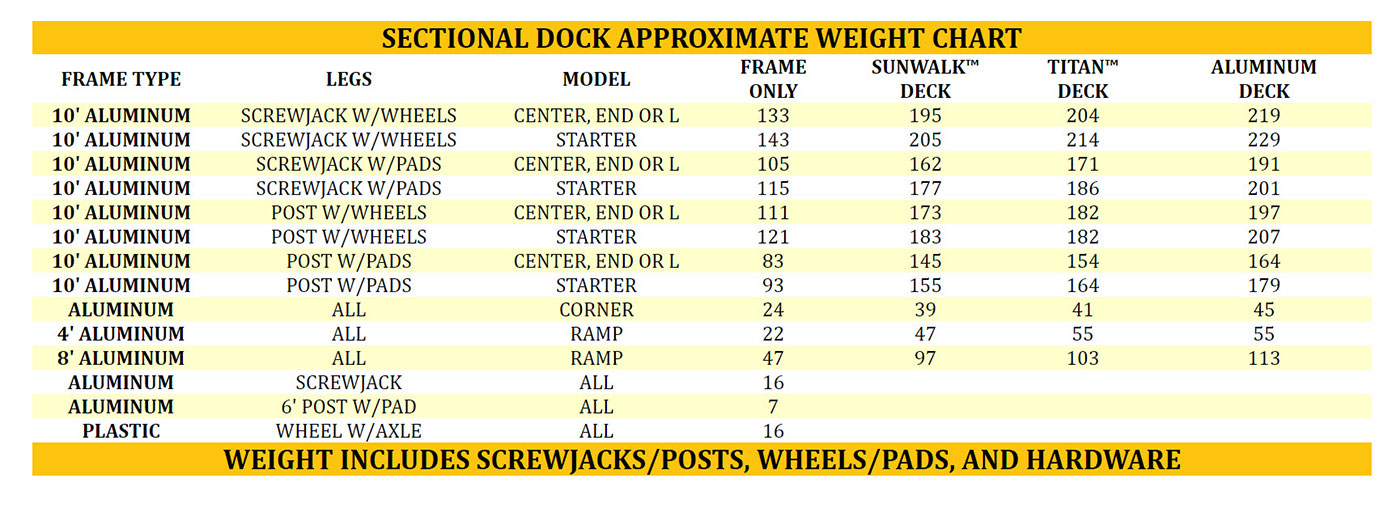

Weight Capacity
